Optics
The Astro Laser Set presents massively extended version of our best-selling product – Ray Optics Demonstration Set, but focused on area of astronomy. This newest teaching equipment is intended and applicable for almost all age groups - from 8 year-old children to adults. Its goal is to acquire basic astronomical knowledge in an interactive way. The set improves the quality of teaching and offers the new possibilities in this constantly evolving field of science.
The Astro Laser Set uses two different independent sources of light (white LED, red and green laser light), which represent the Sun or the stars and are visible even in normal daylight or under artificial lighting in the interior. The kit contains plastic elements that present cosmic bodies (Earth, Moon, exoplanet ...) and optical elements (lenses, mirrors, etc.). The working drawings have exactly marked positions where optical elements, light sources and other objects are supposed to be placed during each task.
All topics and tasks can be conducted by a lecturer of the class in the field of astronomy, physics, optics, mathematics, geometry, etc. Some optical elements from the set (lens, scattering, semicircle, mirrors) can be used to explain and represent other optical phenomena (refraction of light, light reflection, etc.). Every element is taped with magnetized foil at the bottom, allowing intuitive attachment to a magnetic board.
Astro Laser Set contains:
Instruction manual – printed
Video presentations can be found on our youtube channel
Light sources – white LED, red and green laser raybox
Optical models (15 pcs) – 4 different lenses, 8 pieces of different of mirrors, equilateral prism
Astro objects – Earth, Moon, Albedo, Exoplanet, Earth’s atmosphere, bottom pads for the Moon
Example sheets (14 pcs) for very simple and quick preparation of demonstration.
The whole set is stored in a lightweight plastic case allowing comfortable transport. The demonstration is done quickly if the desired objects are located on assigned positions on the sheets:
1 – View Of The Sky
2 – Electromagnetic Radiation Spectrum
3 – Phases Of The Moon
4 – Eclipses
5 – Albedo
6 – Galilei Telescope
7 – Kepler Telescope
8 – Spherical Aberration And Its Correction
9 – Newton Telescope
10 – Cassegrain Telescope
11 – Hubble and James Webb Space Telescope
12 – Radio Telescope
13 – Searching For Exoplanets By Eclipsing Method
14 – Variable Stars
For a quick and very clear explanation of subtractive color mixing without any additional aids;
three plastic discs coated in the colors:
yellow, magenta (purple), cyan (blue-green);
diameter: 195 mm each
For simple experiments with different colors. 5x5 cm, plastic
The Combination Dynamics Track and Optical Bench is aluminum and includes a metric scale. Extremely rigid, this 1.2 meter track will not sag under use. The track includes 2 Adjustable Two Foot Levelers.
Lens d=36mm, plastic frame dimensions 70x70mm.

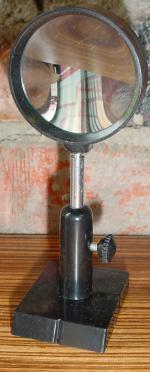

Concave and convex mirrors in black plastic frame on a stem;
Focal length: ± 200 mm;
Mirror diameter: 100 mm;
Stem: L=90 mm, D=10 mm;
Frame diameter: 120 mm;
Distance from mirror center to stem end: 150 mm
Lens diameter 36mm, plastic frame dimensions 70x70mm.
Lens diameter 36mm, plastic frame dimensions 70x70mm.
By filling the cuvette - liquid lens with different liquids and pointing the laser(beams) at the "liquid" lens, it is possible to demonstrate the refractive indices of different liquids.
Cuvette dimensions 105x50x20mm.
On the back of the cuvette there are magnets for fixing the cuvette vertically.
Class 2 teaching laser for use as a high intensity light source
especially for experiments on interference, diffraction and holography as well as interferometry;
Laser diode in a “compact” magnetic module;
Wavelength: 635 nm; optical output power: ≤ 1 mW;
for tripod mounting, the holder for “compact” modules DS617-1H is required;
Operating voltage: 3 V (plug-in power supply included)
Housing dimensions: 84 x 84 x 39 mm
Fiber optic light that changes the color of the light. Powered by 3xAA batteries.
Set for geometric optics experiments. Can be placed horizontally on a table. Includes 3-beam laser, glass bodies, experiment templates and English instructions. Laser powered by 2xAA batteries.
Consists of a 5-beam laser, optical bodies and an optical disk. The working position is horizontal. In a plastic carrying case. Powered by 230V mains.
Geometric optics kit, with 3-beam laser, horizontal 1 extended version, which allows, among other things, the demonstration of light scattering.
The kit allows students to understand the basic principles of ray optics - transmission, reflection, refraction. Using worksheets, it is easy to construct simple optical devices. For example, the worksheet “human eye” helps to understand the importance of glasses.
The kit is designed to be used horizontally on a table. All elements are non-magnetic. A detailed experiment guide with drawings is included in English.
You can demonstrate:
the path of light through a convex and concave lens,
optical prism,
reflection on a plane (convex, concave) mirror,
refraction of light,
refractive indices
demonstrates normal, nearsighted and farsighted vision and the correction of these deviations using glasses.
Galileo as Kepler's telescope,
photo camera,
motion of light in an optical fiber.
The set consists of: • Optical models (13 pcs) - 9 different lenses, 3 types of mirrors, optical fiber model, prism • 3-beam laser with white light source • Worksheets (8 pcs) for very easy and quick preparation of exercises: A - Human eye model, B - Photo camera, C - Galileo's telescope, D - Kepler's telescope, E - Refraction and reflection demonstration sheet, X - Convex lens, Y - Concave lens, Z - Light dispersion.
Material: glass. For studying the refraction of light. Dimensions: 38x38x38mm, height 30mm.
To explain real and virtual images on the mirror;
the virtual image of the "F" is clearly visible on a semi-transparent mirror.
If you push the reversed "F" into this place, you can clearly prove that the object and the image are symmetrical to each other.
Semi-transparent mirror, 135 x 70 mm, in 2 brackets, two objects with "F", one of them mirror-inverted.
Weight: approx. 114 g
For observing interference phenomena by placing and moving two transparent plastic plates with printed concentric circles and parallel lines on top of each other (can also be used on an overhead projector); Circle diameter: 173 mm Plate dimensions: 297 x 210 mm
Two devices included in set.
A base plate with a motor, to which one of the eight supplied colored disks can be connected. When starting the electric motor, the colors of the discs merge into one. Required external DC supply voltage 2...6V.
Projector with three primary color light sources. By switching different light bulbs on and off, you can observe the colors produced and the colors produced when they join on a screen (eg white paper). Required external supply voltage 6V.
Lamp 12 V/30 W with movable condenser for adjusting the convergence of the light beam and two external mirrors for examining the color mixture. With slots for inserting filters, diaphragms, slits, etc., heat-resistant housing.
Dimensions: 160 x 80 x 55 mm
Weight: 320 g
Provides a single beam that is visible in the horizontal plane. Specification: Laser type: diode. Wavelength: 635 nm. Power/class: Pmax < 1mW / 2. Dimensions: 80 x 25 x 20 mm. Power supply: 3V DC / 50 mA. Comes with a tray that holds 2xAA batteries.
High quality red light diode laser pointer.
Powered by 2xAAA batteries.
dimensions: 138 x 18mm
weight: 24g
Suitable to replace a standard E10 screw-base flashlight bulb. Introduce students to Light Emitting Diode (LED) technology and its uses in addition to incandescent bulbs. Voltage 2.5...6V, max power 0.12W. Dimensions: Ø11 x 28mm
For cleaning, polishing and protecting optical glass components
30 sheets, each 115 x 60 m
The Light Sensor can be used for measurements of light intensity in a variety of situations.
- Perform inverse square light intensity experiments using a point source of light
- Conduct polarized filter studies
- Demonstrate the flicker of fluorescent lamps and other lamps
- Carry out solar energy studies
- Perform reflectivity studies
- Study light intensity in various parts of a house or school
- Use it as part of a study of plant growth to measure light intensity
Very bright light source for demonstrating the image size and width ratios of the pinhole camera;
super bright F-shaped LEDs in a plastic housing, battery operated, with on/off switch
Optical axis: 58 mm
Dimensions: 60 x 30 x 127 mm (with tab)
Power supply: 2 AAA batteries (included)
Weight: approx. 109 g
Switchable light from white LED and red laser. Both light sources are certified with the lowest protection class of their kind, the device is assigned to risk group RG0 (“free group”) according to DIN EN 62471 and laser protection class I according to DIN EN 60825.
Experiments:
Propagation of light
Creation of shadows
Reflection of light
Refraction of light
Reflection on a mirror
Images on a flat mirror
Focal point of a convex lens
Images through convex lenses
Function of the eye
Function of glasses
Model of a camera
Model of a slide projector
Model of an astronomical telescope
Model of a microscope
Decomposition of light
Comes with various lenses and other equipment. The LED light is powered by batteries.
For experiments on reflection or for creating images on a flat mirror;
high-quality, flat mirror with ground edges
Material: glass, coated
Dimensions: 75 x 50 x 3 mm
Weight: approx. 28 g
For experiments on reflection on a flat mirror (angle of incidence, angle of reflection) and on creating images on a flat mirror;
Flat mirror on a metal block
Material: plastic film, coated
Dimensions: 68 x 13 x 12 mm
Weight: approx. 12 g
For studying reflections in optics. Plastic base with safe aluminized mirror surface 145x95mm.
Cuboid 75x50x18mm.
The set includes a wooden stand and two freely rotating polaroids with a diameter of 21 cm. By turning the polaroids relative to each other, the light can be "faded".
For examining the refractive index of liquids;
Equilateral prism 60°;
made of acrylic glass plates;
with filling opening and stopper;
Base length: 60 mm; Height: 60 mm
Red light source giving a beam with minimal divergence, housed in a compact and sturdy aluminium body. It is based on a 650 nm class II industrial laser module with a glass collimating lens. Fitted with a 10 cm stainless steel rod. A plug-in mains-adaptor power supply is included.
Laser protection class: II
Output power: 0.9 – 1 mW at 20° C
Wavelength 650 nm ± 5 nm
Spot size at 5 m distance: <8 mm diam.
Divergence <1 mrad
Plug-in power supply: Primary: 100 – 240 V, 50/60 Hz
Secondary: 6 V DC, 300 mA
Plastic screen with base. Dimensions 120 x 130 mm. Base height 23mm.
The Go Direct® Emissions Spectrometer enables students to conduct emissions analysis; measure spectra of light-emitting samples in the range of 350 to 950 nm; and examine emissions spectra of light bulbs, spectrum tubes, or the sun.
- Dimensions: 10.1 cm × 7.0 cm × 4.5 cm
- Power supply: USB powered
- Detector: Linear CCD
- Wavelength range: 350–900 nm
- Wavelength reporting interval: 1 nm
- Optical resolution: 3.0 nm (as determined by the full width of half maximum of hydrogen 434 nm peak)
- Wavelength accuracy: ±2 nm (as determined by hydrogen peaks)
